DIN 338-E Typ Ti TiAlN PROFI PLUS // 9,8 mm
search
  • DIN 338-E Typ Ti TiAlN PROFI PLUS // 9,8 mm

DIN 338-E Typ Ti TiAlN PROFI PLUS // 9,8 mm

14,14 €
Bruttopreis

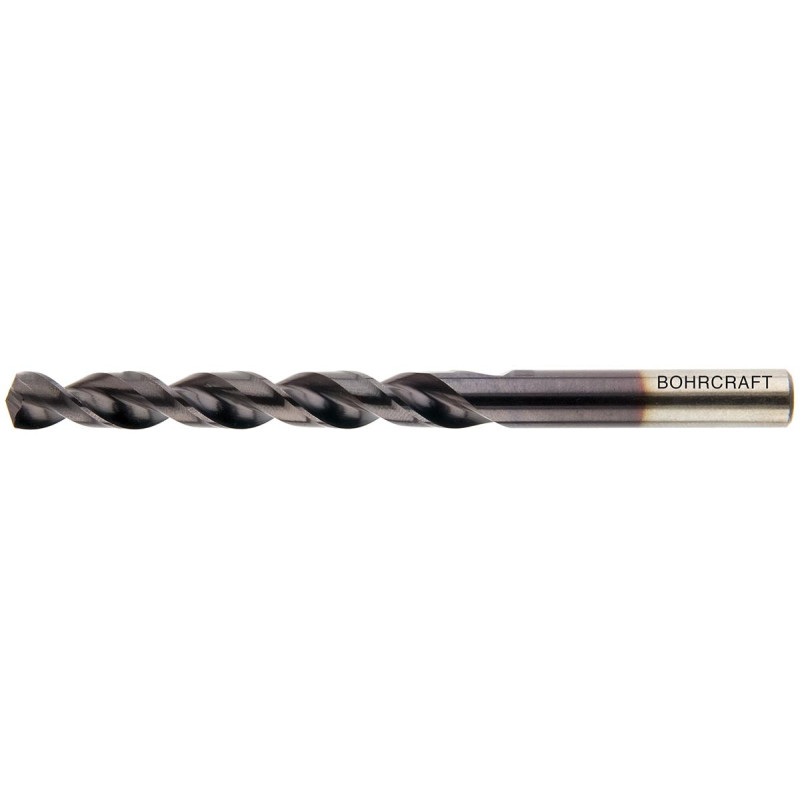

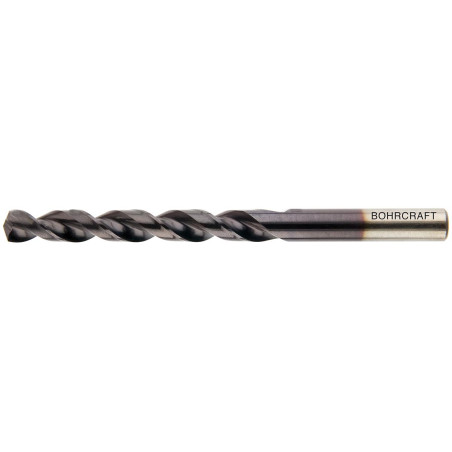

Spibo DIN 338 HSS-E Split Point Typ Ti TiAlN 9,8 mm PROFI PLUS
Menge

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Spiralbohrer für VA mit verstärktem Bohrerkern und speziell geformter Spannut zur besseren Spanabfuhr, zusätzlich mit TiAlN Beschichtung für höhere Standzeit. Aus Hochleistungs-Schnellarbeitsstahl (5 % Kobalt), zylindrisch, kurze Ausführung, rechtsschneidend, Typ VA/Ti, Spitzenwinkel 130°, Kreuzanschliff nach DIN 1412 C. Anwendung: Für Stahl und Stahlguss legiert und unlegiert (bis 1.200 N/mm² Festigkeit), Titan und Titanlegierungen, rost- und säurebeständigen Stahl, V2A und V4A Stahl, Warm- und Kaltarbeitsstahl und Wälzlagerstahl.

Gewicht (KG): 0,060
Abmessung (mm): 9,8
Gesamtlänge (mm): 133
Arbeits-Spirallänge (mm): 87
Schaft (mm): 9,8
DIN: 338
Typ: VA/Ti
Form: C
Schaft-Form: zyl.
Material: HSS-E Co5
Bohrtiefe: 5xD
Beschichtung: TiALN
Spitzenwinkel: 130°
Produkt-Linie: Profi-Plus
bc11430300980

Besondere Bestellnummern

ean13
4014691204360
Hersteller-Teilenummer (MPN)
11430300980
